Winch Pulleys

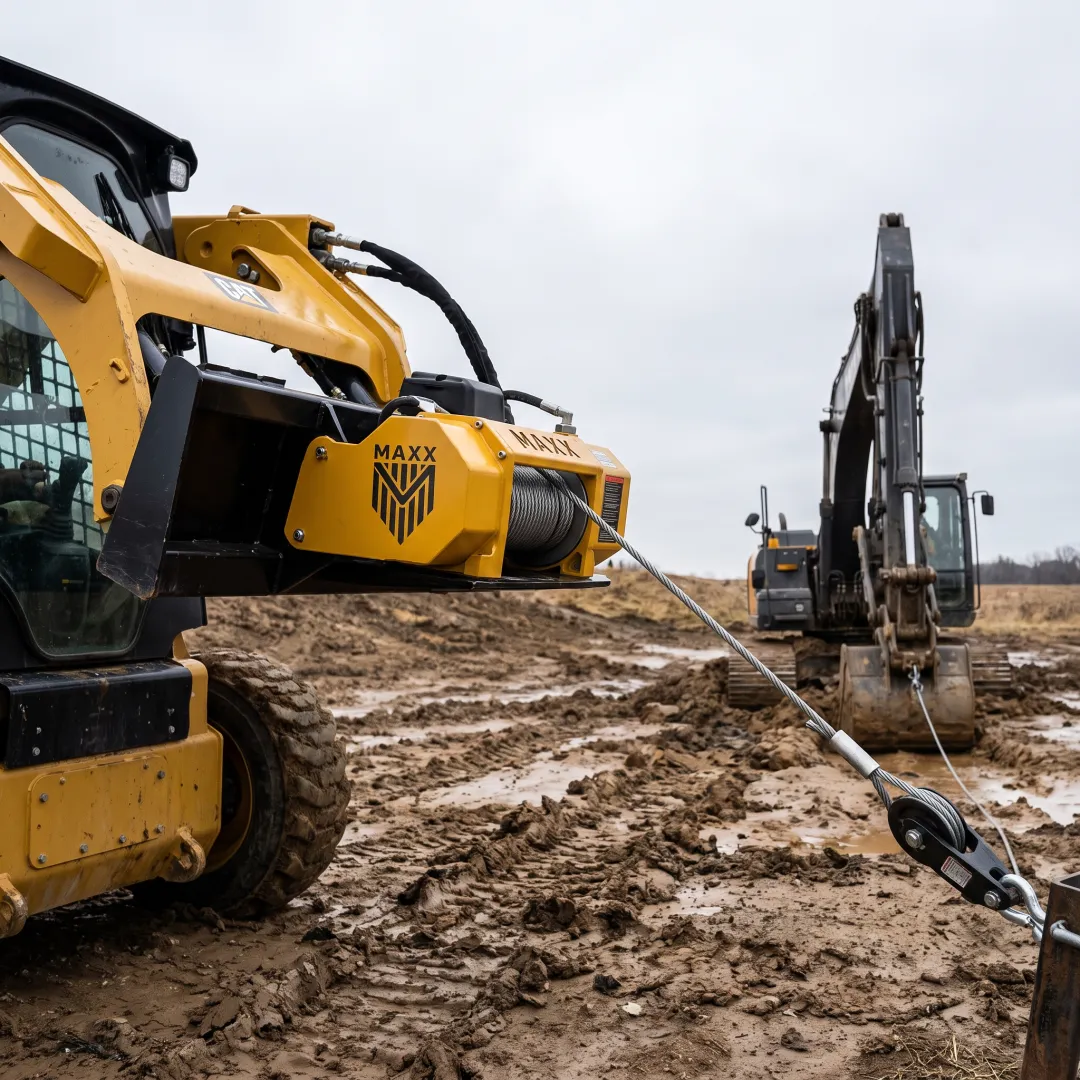

A winch works with a pulley by routing the cable through the pulley's sheave to change direction and multiply pulling force. In a single-line pull, a 12,000 lb winch pulls at rated capacity. Adding one snatch block in a double-line configuration effectively doubles the pulling power to approximately 24,000 lbs, though at half the cable speed. The pulley must be rated for the load, properly anchored, and positioned to maintain appropriate cable angles for safe operation.

The four main pulley configurations used in winching are: (1) Fixed pulley – changes cable direction without mechanical advantage; (2) Single movable pulley – doubles pulling force; (3) Compound pulley – combines fixed and movable pulleys for greater multiplication; (4) Block and tackle – multiple pulleys in series providing maximum mechanical advantage. In recovery operations, operators commonly use single or double snatch blocks to achieve 2:1 or 3:1 mechanical advantage ratios.

Your winch pulley (snatch block) should be rated for at least 1.5 times your winch's maximum pulling capacity to provide a safety margin. For Maxx Attachments' 12,000 lb hydraulic recovery unit, use a pulley rated for minimum 18,000 lbs. For the 9,000 lb model, a 13,500 lb rated pulley is recommended. Always verify the pulley's working load limit matches your cable diameter and intended recovery applications before deployment.

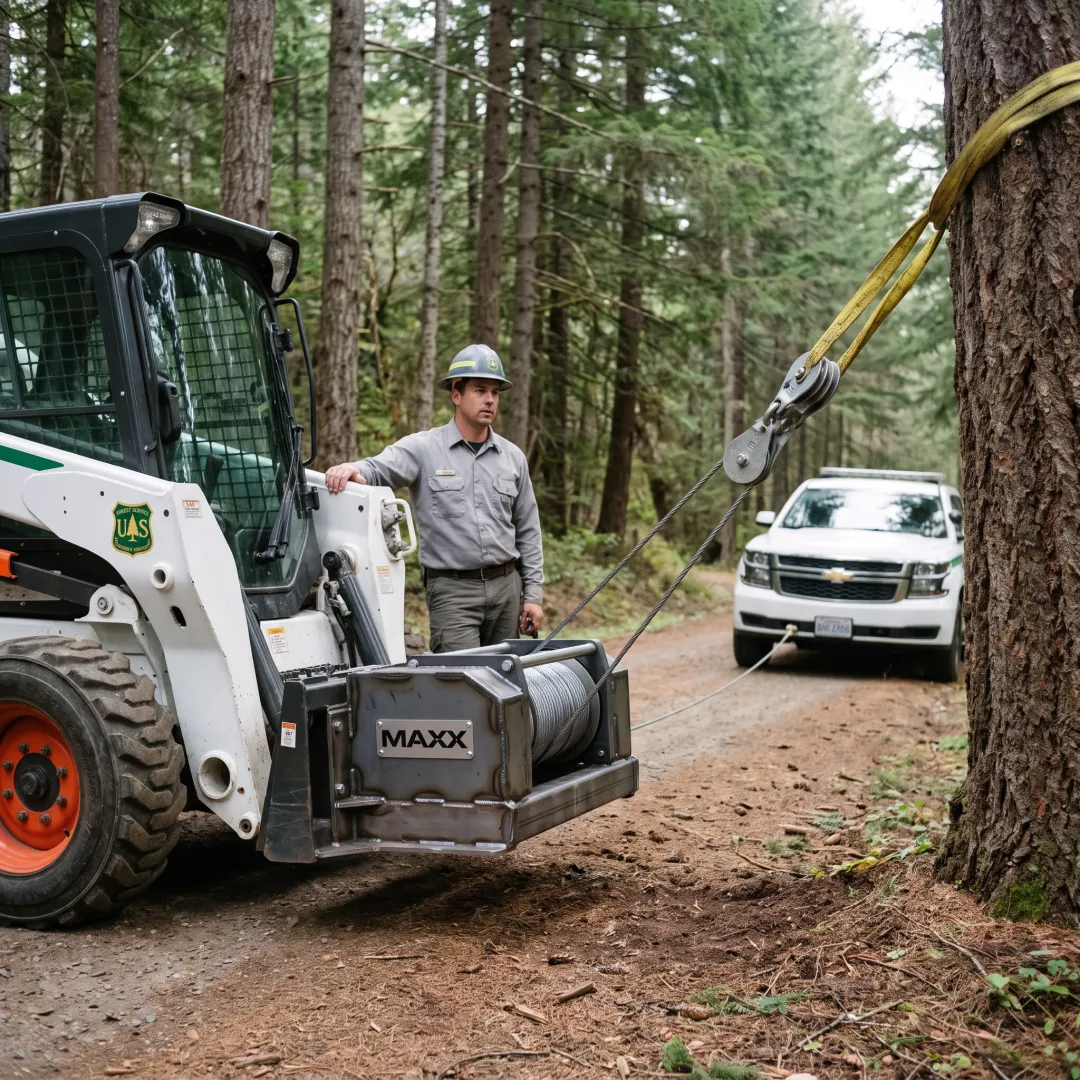

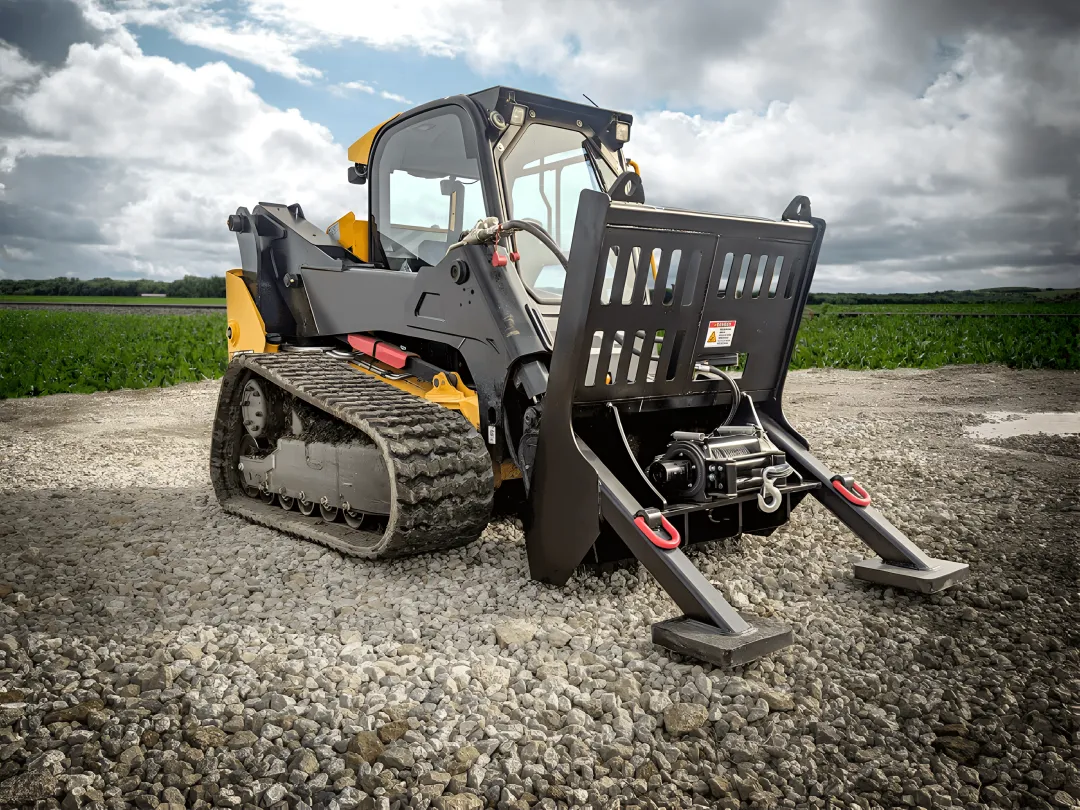

Yes, winch pulleys are fully compatible with skid steer-mounted hydraulic recovery units like Maxx Attachments' models. The high-torque hydraulic motors provide consistent pulling power through pulley systems, enabling effective double-line and compound rigging configurations. Ensure your skid steer has adequate stability and ballast for the recovery loads, position the machine perpendicular to the pull direction, and use proper anchor points rated for the multiplied forces created by the pulley system.

Regular maintenance extends pulley life and ensures safe operation. Inspect sheaves for wear, cracks, or flat spots before each use. Clean and lubricate the sheave bearing monthly or after exposure to mud, water, or debris. Check the pulley's side plates for deformation and verify all attachment points and shackles are secure. Replace pulleys showing more than 10% sheave groove wear or any structural damage. Store pulleys in dry conditions and keep cable matched to groove diameter specifications.

Hydraulic winches are the powered pulling devices that spool cable and generate pulling force through high-torque motors, like Maxx Attachments' 9,000-12,000 lb capacity units. Snatch blocks are unpowered pulleys that redirect cable and create mechanical advantage when used with winches. Recovery operations require both: the winch provides the base pulling capacity, while strategically positioned snatch blocks multiply that force, change pull angles, and enable complex rigging for challenging extractions in construction and agricultural environments.
