Skid Steer Quick Attach Buckets

To change a quick attach bucket, align the loader arms with the bucket's coupler plate, tilt the arms forward to engage the top hooks, then lower and lock the wedge or pin mechanism to secure the bottom. Always disengage hydraulic couplers first if the bucket is powered, and confirm the locking pins are fully seated before operation.

GP Buckets range from 48"-96" wide, 24"-50" deep, and 20"-40" tall, with capacities from 0.5 to 2.75 cubic yards. Conveyor Cleaning Buckets range from 30"-72" wide with floor lengths of 48"-96". Custom dimensions are also available to match specific machine and application requirements.

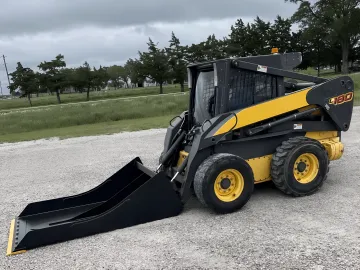

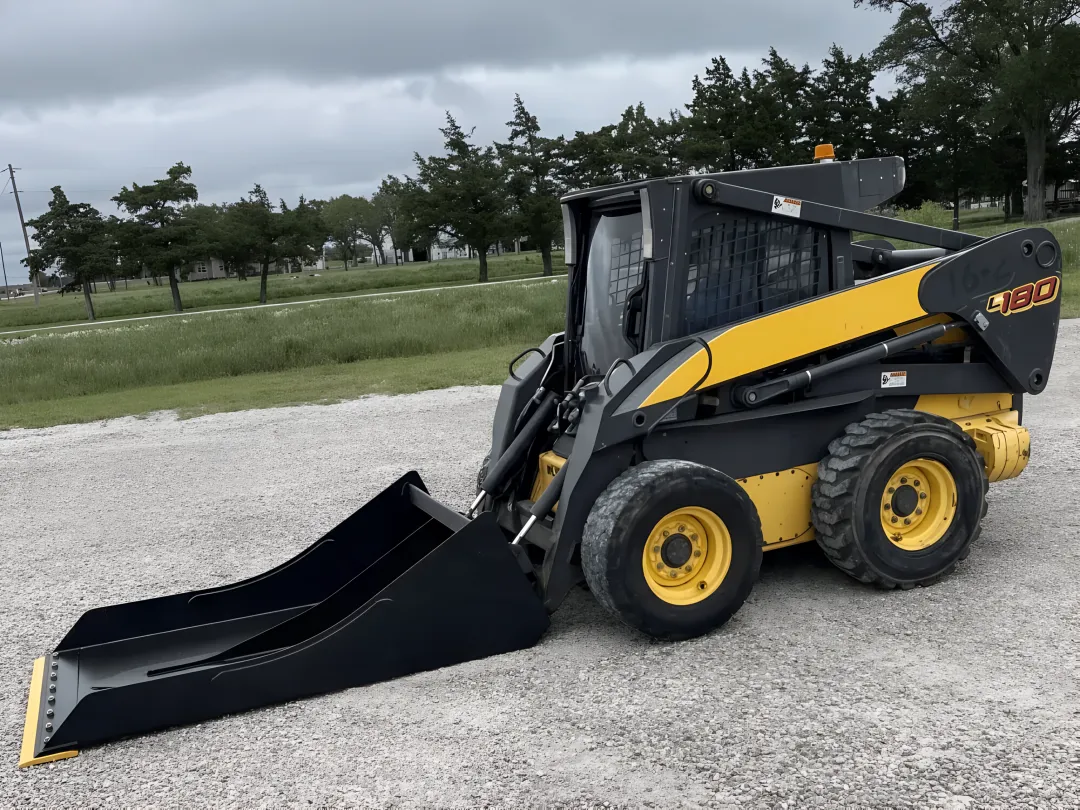

General purpose buckets are designed for broad material handling and earthmoving tasks, built with A-572 steel and AR400 wear pads. Conveyor cleaning buckets have an extended, low-profile floor tailored specifically to scrape and clear spilled material from under conveyor systems in quarry and mining operations.

Maxx Attachments buckets are constructed from A-572 high-strength steel, reinforced with A-514 wear plates and AR400 wear pads in high-abrasion zones. Cutting edges use replaceable AR400 bolt-on steel, allowing operators to swap worn edges instead of replacing the entire bucket, extending overall service life.

Yes, GP Buckets can be custom designed to any desired height, width, and depth to match unique application needs. Conveyor cleaning buckets are also available in a wide range of floor lengths and widths, ensuring the bucket profile fits the specific conveyor or clean-up task at hand.

Capacity varies by model: GP Buckets handle 0.5 to 2.75 cubic yards of material depending on size, while Conveyor Cleaning Buckets range from roughly 870 lbs to over 1,580 lbs in structural weight across different width and length configurations, supporting heavy-duty daily use.
